Specifications
|
||
|---|---|---|

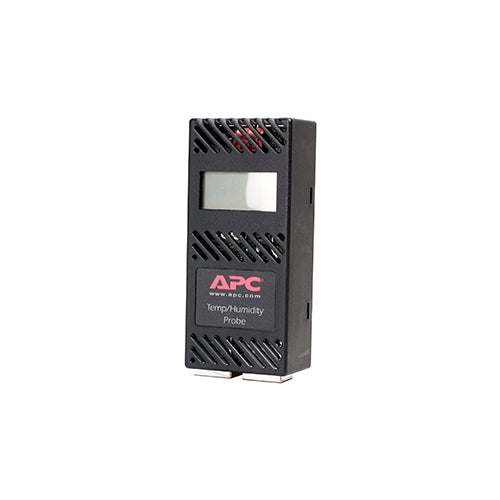

| Product Name | Temperature & Humidity Sensor with Display | |
| Model / Part Number | AP9520TH | |
| Brand | APC | |
| Manufacturer | APC by Schneider Electric | |
| Product Type | Environmental monitoring device – temperature & humidity sensor | |
| Color | Black | |
| Display | Integrated LCD display for real-time temperature and humidity readings | |
| Measurement Functions | Temperature and humidity | |
| Temperature Accuracy | ±1 °C (typical) | |
| Humidity Accuracy | ±3 % RH (typical) | |
| Physical Dimensions (H×W×D) | ~99 mm × 43 mm × 28 mm | |
| Net Weight | ~0.08 kg | |
| Operating Temperature Range | 0 °C to 45 °C | |
| Operating Relative Humidity | 0 % to 95 % | |
| Storage Temperature Range | −40 °C to 65 °C | |
| Storage Relative Humidity | 0 % to 95 % | |
| Operating Altitude | 0 – 3048 m (0 – 10 000 ft) | |
| Storage Altitude | 0 – 15240 m (0 – 50 000 ft) | |
| Mounting | Flexible mounting (rack or wall mount options) | |
| Interface | A-Link sensor interface for integration with APC/NetBotz systems | |
| Certifications / Compliance | AS/NZS 3548 Class A, CE, EN 55022 Class A, EN 55024, FCC Part 15 Class A, ICES‑003, VCCI | |
| Environmental Compliance | RoHS compliant | |
| Packaged Contents | Sensor with display, installation guide, mounting pads | |
| Warranty | 2 years (repair or replace) | |
| Intended Use | Environmental monitoring for data centers, network closets, racks, and enclosures | |
|
