Specifications
|
||
|---|---|---|

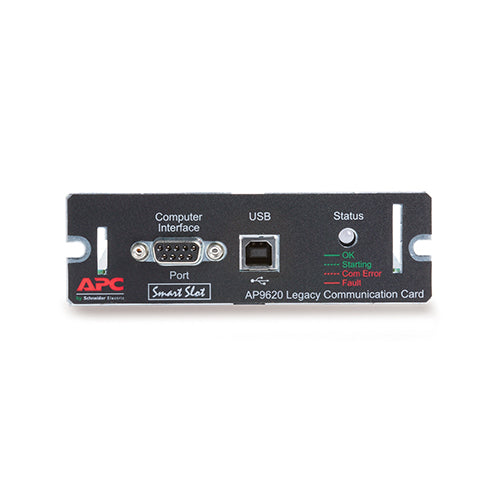

| Product Name | Legacy Communications SmartSlot Card | |
| Model Number | AP9620 | |
| Manufacturer | Schneider Electric | |
| Brand | APC | |
| Product Type | UPS Management / Communication Card | |
| Slot Type | SmartSlot | |
| Application | UPS monitoring and communication for legacy systems | |
| Compatible UPS | Select Smart-UPS models including SMT, SMX, SRT, SURTD | |
| Communication Interface | RS-232 Serial, USB | |
| Ports | 1 × DB-9 Serial, 1 × USB 2.0 | |
| Communication Protocol | UPSLink (legacy serial communication) | |
| Installation Type | Plug-in module for UPS SmartSlot | |
| Form Factor | Internal SmartSlot card | |
| Functions | Monitoring, configuration, and communication with UPS management systems | |
| Dimensions (H × W × D) | 38 × 121 × 114 mm | |
| Weight | Approx. 0.08 kg | |
| Operating Temperature | 0°C to 45°C | |
| Storage Temperature | −5°C to 45°C | |
| Operating Humidity | 0–95% RH (non-condensing) | |
| Operating Altitude | 0–3000 m | |
| Storage Altitude | Up to 15000 m | |
| Compliance | RoHS, REACH | |
|
