Specifications
|
||
|---|---|---|

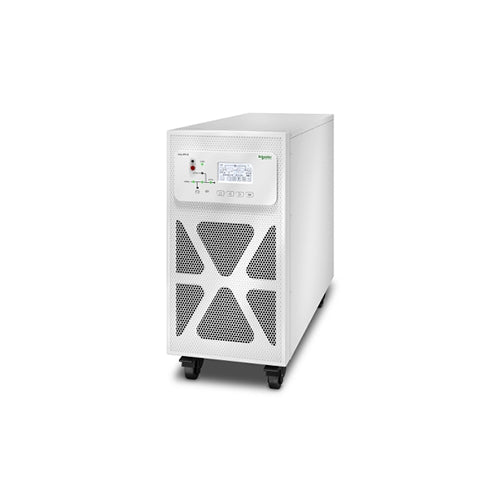

| Model / Series | APC Easy UPS 3S – E3SUPS15K3I | |
| Rated Power | 15 kVA / 15 kW | |
| UPS Topology | Double‑conversion Online | |
| Phase Configuration | 3‑Phase Input / Single‑Phase Output | |
| Input Voltage | 380 / 400 / 415 V AC | |
| Input Voltage Range | Approx. 304 – 477 V AC | |
| Input Frequency Range | 45 – 65 Hz | |
| Input Power Factor | ~0.99 at full load | |
| Input THD | Typically < 5 % at full load | |
| Maximum Input Current | Approx. 28 A | |
| Output Voltage | 220 / 230 / 240 V AC (single phase) | |
| Output Frequency | 50 / 60 Hz (synchronized to mains) | |
| Output Voltage Regulation | ± 1 % (typical) | |
| Output THD | < 3 % (linear load) | |
| Load Crest Factor | 3 : 1 | |
| Overload Capability | 125 % for 10 min; 150 % for 1 min | |
| Battery Configuration | External battery system (batteries not included) | |
| Battery DC Voltage | Designed for external battery systems | |
| Charger / Runtime | Depends on external battery capacity | |
| Bypass | Built‑in automatic & maintenance bypass | |
| Short‑Circuit Withstand | Up to ~10 kA (upstream protection dependent) | |
| Display / UI | Multifunction LCD status & control | |
| Communications / Management | USB / RS‑232; optional network/SNMP interface | |
| Efficiency (Online Mode) | ~95 % (typical) | |
| Operating Temperature | 0 °C – 40 °C | |
| Humidity (Operating) | 0 – 95 % non‑condensing | |
| Altitude Rating | Up to ~1000 m without derating | |
| Protection Class | IP20 (indoor use) | |
| Dimensions (H × W × D) | Approx. 530 × 250 × 700 mm | |
| Weight (Net) | Approx. 36 kg | |
| Certifications / Standards | IEC 62040‑1/‑2/‑3/‑4; CE; EAC; RCM; WEEE; RoHS | |
|
