Specifications
|
||
|---|---|---|
| Brand | DME PROLINK | |
| Model Number | D1629‑LCASMDGR | |

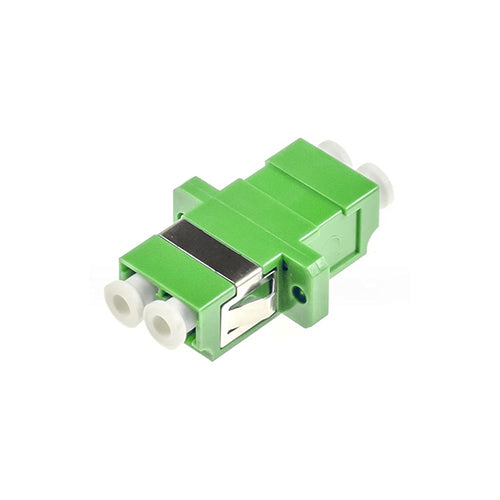

| Product Name | LC/APC to LC/APC Duplex Single‑Mode Fiber Optic Coupling Adapter | |
| Connector Type | LC/APC (female coupling) | |
| Polish Type | APC (Angled Physical Contact) | |
| Fiber Type | Single‑Mode | |
| Adapter Format | Duplex | |
| Insertion Loss | ≤ 0.20 dB | |
| Repeatability / Interchangeability Loss | ≤ 0.20 dB | |
| Operating Temperature Range | ‑25 °C to +70 °C | |
| Storage Temperature Range | ‑25 °C to +70 °C | |
| Durability (Mating Cycles) | > 500 times | |
| Standards / Compliance | IEC 61754‑20 (LC connector family) | |
| Features | Precision ceramic alignment sleeve, compact LC duplex format, high‑precision alignment, designed for reliable single‑mode interconnects. | |
| Applications | Single‑mode fiber‑optic patch panels, duplex backbone links, telecom/data center interconnects. | |
| Packaging | Individually packed | |
|
