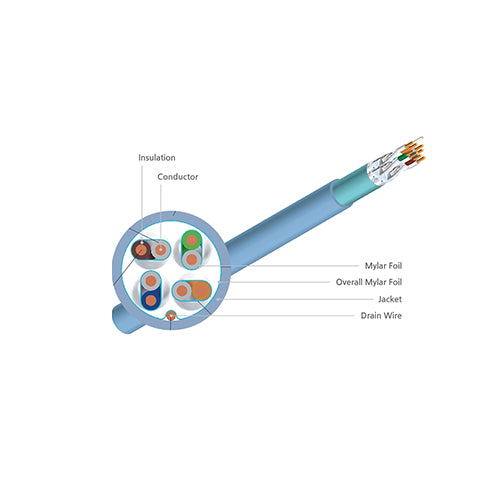

Conductor

• Material: SOLID Bare Copper
• Nominal Outer Diameter (mm): 0.550 ± 0.005

Insulation

• Material: Skin-foam-skin PE
• Diameter: 1.28±0.05 mm

Screening

• Material: Al/Mylar
• Drain wire: Yes

Sheath

• Thickness: 0.5±0.05 mm
• External O.D: 6.9±0.5 mm
• Surface: Clean
• Material: LSZH(complies RoHS)
• Color: TBD
• Surface Printing:
  • Letter height: 3.0±0.3mm
  • Color: Black
  • Print error & Space ≤±0.5%, 1m
• Core Color:
  • 1: White/Blue
  • 2: White/Orange
  • 3: White/Green
  • 4: White/Brown

Packing

• Drum
• Packing length: 305±1.5m

Additional Features

• Rip Cord: Yes

Sheath Physical Properties

• Before Aging

  • Tensile Strength (Mpa): ≥10.0
  • Elongation (%): ≥125

• After Aging

  • Tensile Strength (Mpa): ≥8.0
  • Elongation (%): ≥100

• Cold bend

  • -20±2°C ×4h
  • 8×Cable O.D.
  • No visible cracks
