| Attribute | Details |
|---|---|

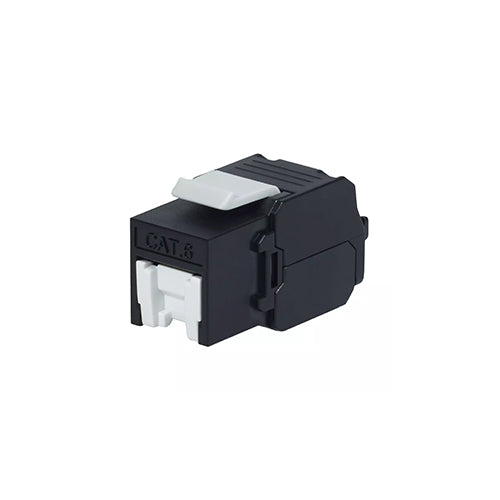

| Product Name | ExTell EK6AU1803 CAT 6 90° Unshielded Keystone Jack |
| Category | CAT 6 (Category 6) |
| Jack Type | 180° Unshielded Keystone Jack |
| Mounting Type | Keystone (fits into a keystone-compatible faceplate or patch panel) |
| Shielding | Unshielded (no extra shield around the conductors) |
| Termination Type | Punch-down terminals |
| Termination Tool | Punch-down tool required for installation |
| Wire Gauge Supported | Supports 22 AWG to 26 AWG wire sizes |
| Contact Material | Gold-plated contacts for better conductivity and durability |
| Housing Material | High-quality, durable plastic housing (often ABS or polycarbonate) |
| Compatibility | Compatible with CAT 6, CAT 5e cables |
| Cable Type | Works with unshielded twisted pair (UTP) cables |
| Applications | Ethernet networks, voice systems, audio/video equipment, telephone systems, home networking, etc. |
| Color | Available in multiple colors: white, black, and sometimes other options |
| Standard Compliance | Complies with TIA/EIA 568B wiring standard |
| Connector Type | RJ45 (Registered Jack 45) |
| Operating Temperature | Typically operates in a range of -10°C to 60°C (14°F to 140°F) |
| Contact Resistance | Typically ≤ 20 mΩ per contact at 20°C |
| Insertion Loss | Typically ≤ 0.1 dB per pair at 100 MHz |
| Return Loss | Typically ≥ 40 dB at 100 MHz |
| Dimensions | Typically around 1.25 x 0.75 x 0.5 inches (L x W x H) |
| Package Quantity | Available in bulk or individual packaging options |
| Packaging Type | Often sold individually or in bulk packs |
| Compliance and Standards | Meets ANSI/TIA/EIA-568-B standards for CAT 6 connections |
| Cable Strain Relief | Built-in strain relief to secure cables and minimize stress on the terminals |
| Insertion Cycle Rating | Rated for a minimum of 750 insertion/removal cycles |
| Operating Humidity | Typically 10% to 90% non-condensing |
| Durability | High durability, typically rated for more than 10 years of use |
| Certifications | UL listed, RoHS compliant |
| Weight per Unit | Typically between 10-15 grams per jack |
