Description
Specifications
-
Compatible both T568A and T568B wiring schemes.
-
Toolless type, easy installation.
-
Compatible for 24 port applications in 1U, also fit high density 48port panel.
-
Easily snap in and out of patch panel, and surface boxes or other application.
-
UL Certified & RoHS Compliant.
-
50U" gold plating.
Electrical Characteristics
-
Insulation Resistance: 500 MΩ.
-
Dielectric Withstanding Voltage: 1000 V AC.
-
DC Current Rating: 1.5 Amps.
-
DC Resistance: 0.1Ω.
-
Contact Resistance: 20mΩ.

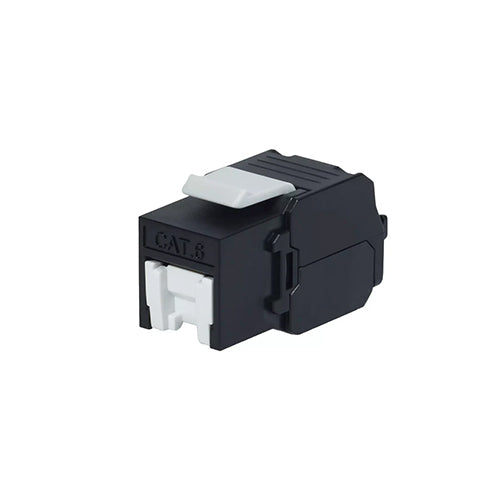

ExTell EK6XU1803-S CAT 6 180° Unshielded Keystone Jack with Shutter Price in Dubai, UAE
EK6XU1803-S
Specifications
-
Compatible both T568A and T568B wiring schemes.
-
Toolless type, easy installation.
-
Compatible for 24 port applications in 1U, also fit high density 48port panel.
-
Easily snap in and out of patch panel, and surface boxes or other application.
-
UL Certified & RoHS Compliant.
-
50U" gold plating.
Electrical Characteristics
-
Insulation Resistance: 500 MΩ.
-
Dielectric Withstanding Voltage: 1000 V AC.
-
DC Current Rating: 1.5 Amps.
-
DC Resistance: 0.1Ω.
-
Contact Resistance: 20mΩ.
