Specifications
|
||
|---|---|---|

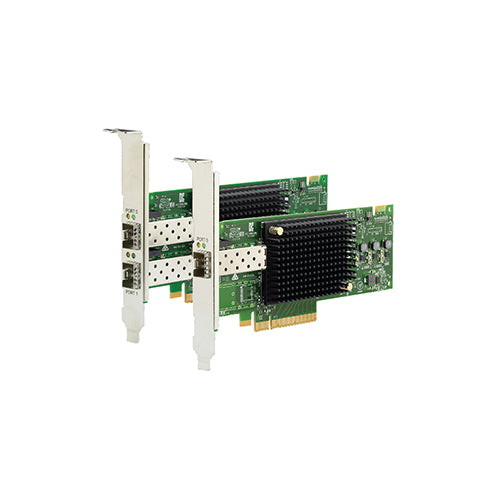

| Product Name | Lenovo DSSULNV55OTH000BX008 Emulex 16Gb Gen 6 Dual-port Fibre Channel HBA | |
| Product Type | Fibre Channel Host Bus Adapter (HBA) | |
| Interface | PCIe 3.0 x8 | |
| Ports | 2 x 16Gb Fibre Channel ports | |
| Data Transfer Rate | 16Gb/s per port | |
| Chipset | Emulex Gen 6 | |
| Form Factor | Low-profile, full-height PCIe | |
| Compatibility | Lenovo ThinkSystem Servers | |
| Operating System Support | Windows, Linux, VMware | |
| Part Number | DSSULNV55OTH000BX008 (01CV840) | |
| Supported Features | Fibre Channel Protocol (FCP), FCoE, Virtual Port, Offload, NPIV | |
| Power Consumption | Typically 10-15W | |
| Included Components | HBA adapter, low-profile/full-height bracket, cables | |
| Operating Temperature | 0°C to 55°C | |
| MTBF | 2 million hours | |
| Dimensions | Low-profile (can vary with bracket type) | |
|
