| Feature | Details |
|---|---|
| Hardware Interface | 1 × 10/100/1000 Mbps LAN/WAN Port, 2 × 10/100/1000 Mbps LAN Ports, 1 × Micro SIM Card Slot |
| Buttons | WPS/Reset Button, Wi-Fi On/Off Button, Power On/Off Button |
| External Power Supply | Power Adapter: Input Power 100-240V~50/60 Hz 0.6A, Output: 12VDC 1.5A |
| Dimensions (W x D x H) | 202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in) |
| Antenna | 2 × Detachable 4G LTE Antennas |
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm, 11ac HT20: -73 dBm, 11ac HT40: -68 dBm, 11ac HT80: -64 dBm, 11n HT20: -77 dBm, 11n HT40: -73 dBm; 2.4 GHz: 11g 54M: -74 dBm, 11n HT20: -72 dBm, 11n HT40: -69 dBm |
| Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz), TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz), 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Carrier Aggregation | B1+B3/B5/B7/B8/B20, B3+B1/B3/B5/B7/B8/B20/B28/B38/B40, B5+B1/B3/B5/B7/B40, B7+B1/B3/B5/B7/B8/B20/B28, B8+B1/B3/B7, B20+B1/B3/B7, B28+B3/B7/B40, B38+B38, B40+B40, B41+B41 |
| Quality of Service | Bandwidth Control |
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
| Management | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | PPTP VPN, OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Certification | CE, RoHS |

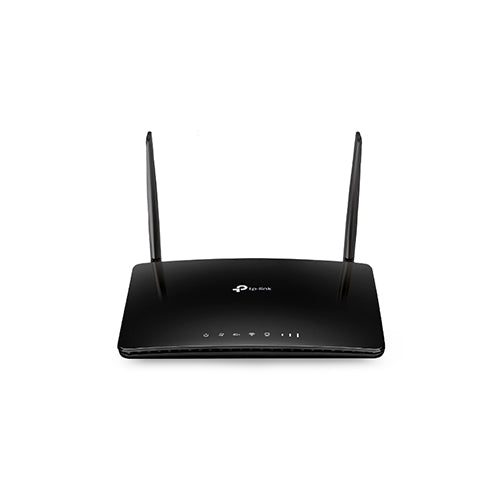

| Package Contents | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR500, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
